The properties editor allows you set any of the properties of the selected objects using individual controls specific to each of the objects parameters.

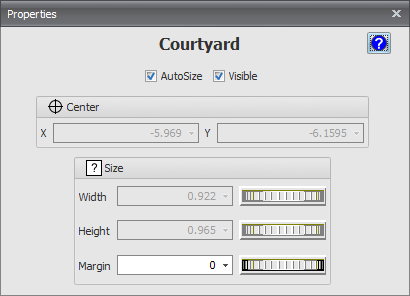

Courtyard Editor
There are two types of property editor displays: the dockable and the pop-up panel. The Dockable Properties Panel The first one is in the properties panel that is usually displayed on the left. If you cannot see the properties panel either on the left or the right, click on the properties panel button The Popup Properties Panel The second one is a pop-up properties panel which only appears when an object is selected. If you do not see the pop-up properties panel displayed when an object is selected, press the F2 key. Pressing the F2 key toggles the visibility of the pop-up properties panel. You can also press the pop-up button
|
in the ribbon Panels/Panels button group.
To see what each of the editor's controls does: move the mouse cursor over the control in AutoTRAX DEX (not this help topic) and a popup tooltip will appear.  A Typical Popup Tooltip for a Control Can't See the Tooltips? If you cannot see the tooltip: make sure the Show Tooltips check button on the left of the AutoTRAX DEX status bar is 'checked'.  The Show Tooltips Check Button Learning your way around the software. Turning Tooltips On and Off. |
